CEVM – Viaduct of Millau – Periodic Detailed Inspection by drone

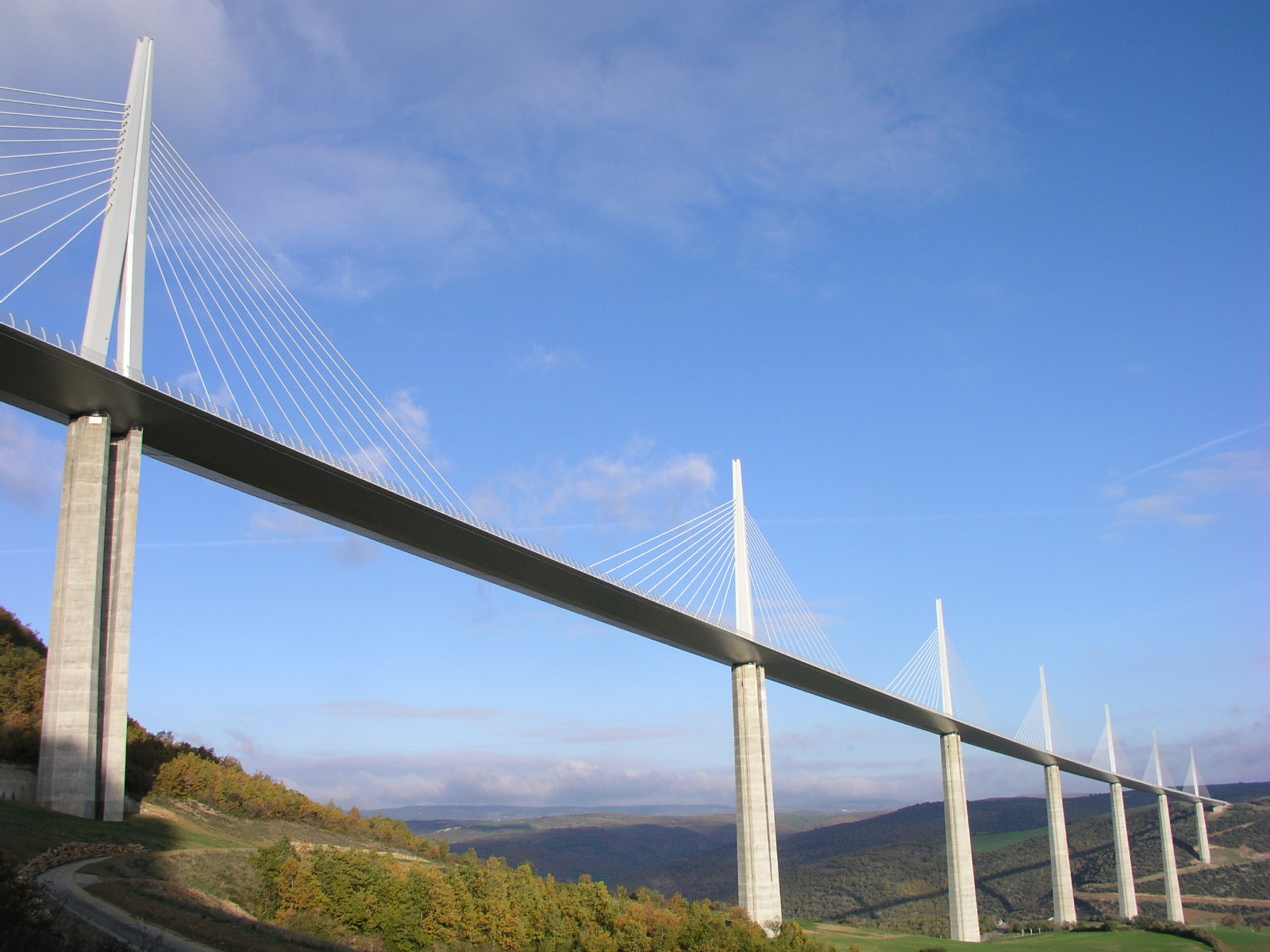

The viaduct is a cable-stayed bridge 2 460 m long. Supported by 7 pylons with 2 of 221 m and 245 m (world record), the deck allows the A75 to cross the Tarn valley at about 270 m high above the river. Its deck is 32 m wide accommodates 2 x two traffic lanes and two emergency routes. Each seven pillars are extended by an 87 m high tower where 11 pairs of stay cables are anchored.

Client

Project Manager

SET_S_MATRICE_H_V_SEPARES_OK                 logo_sncf_reseau_web

Features

As part of the inspection of the exterior pillars of the Millau viaduct, DIADES has developed a specific methodology for inspection by a drone based hardware and a specifically developed software suite DIA-MAP ® to plating the all the pictures collected and pathologies mapped on a 3D model of the structure.

  • Length: 2 460 m
  • 8 bays including 2 pillars of 221 m and 245 m
  • Multi-guyed steel deck semi-range
  • The highest road bridge in the world, which rises to 270 m
  • Designed for a lifespan of 120 years
dscf0970

Mission of Diades

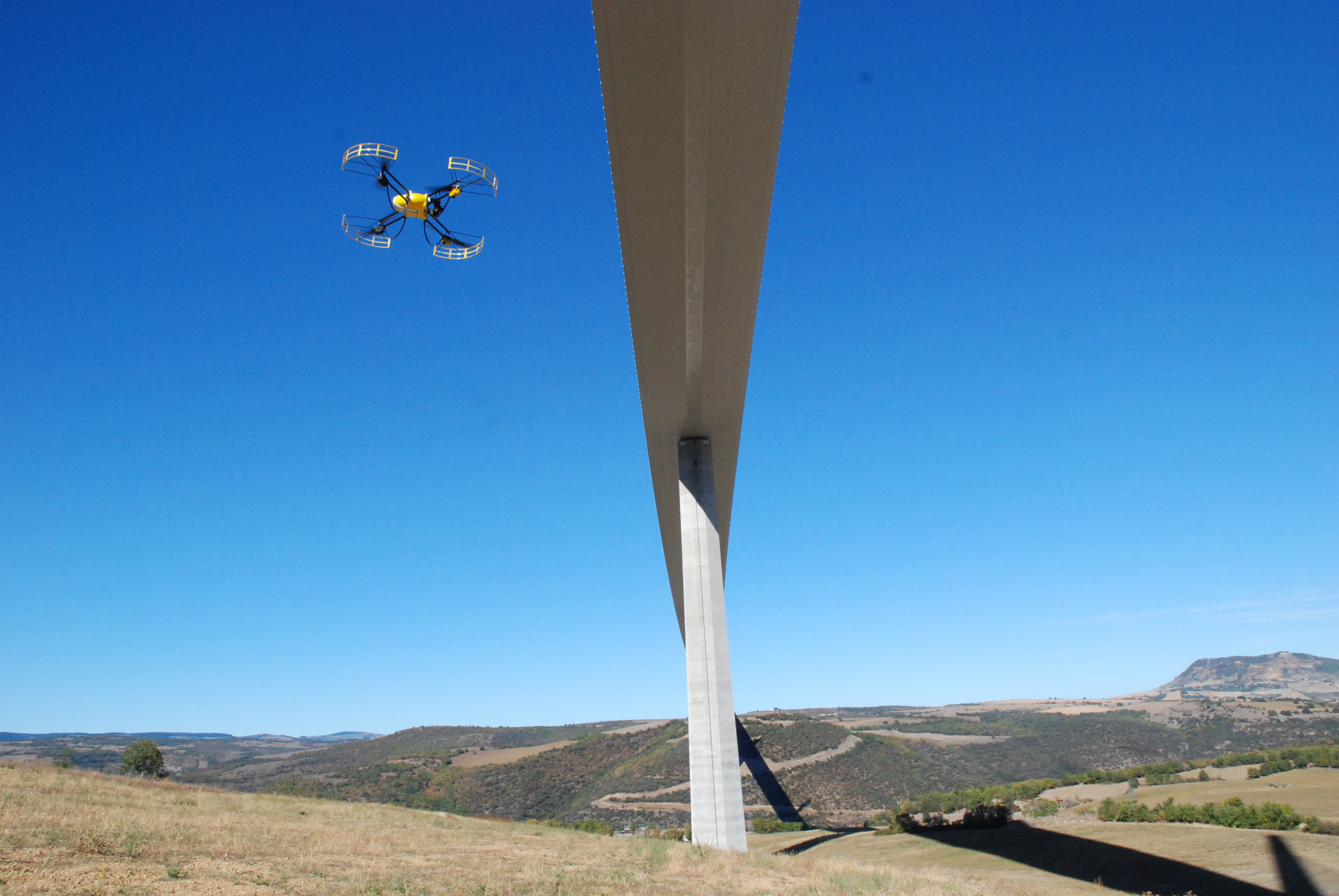

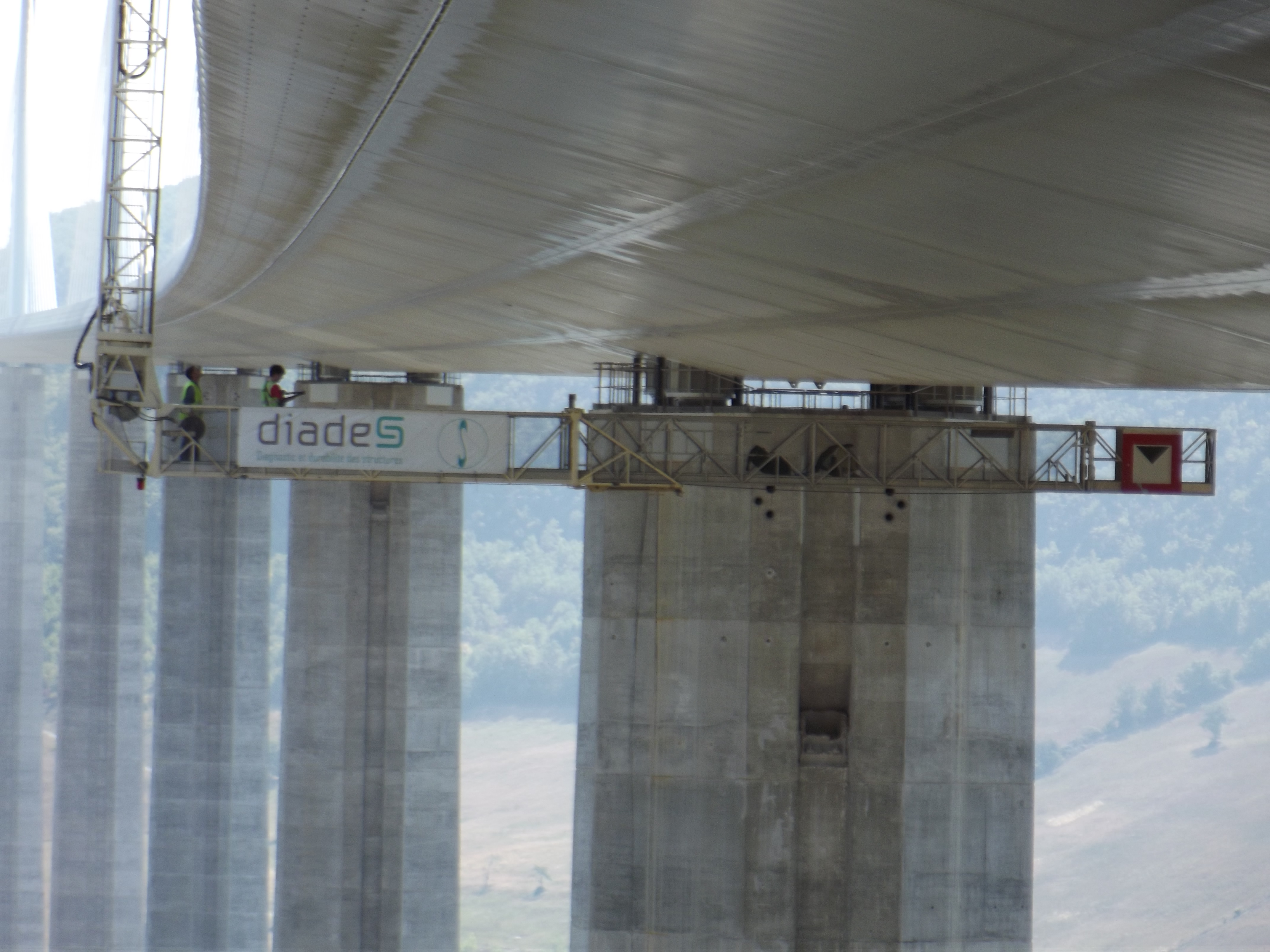

Our mission was to conduct the first periodic detailed inspection of the life cycle of the Millau Viaduct, under the terms of the ITSEOA 2010 February 16, 2011. Given the characteristics of this monumental construction, the means employed had to be adapted accordingly. Especially, the detailed inspection of the exterior faces of the pillars was performed using the U130 drone of DIADES, specifically developed by NOVADEM. Only in the control of the outer faces, in the split stacks of pillars was performed by rope workers. The inspection of the underside of the deck has, meanwhile, been performed using an under-bridge platform unique in France. As part of this PDI covers the dismantling of anchor caps has been made, acrobatic visits were necessary and testing video-endoscopies were carried out under the control and responsibility of DIADES.
